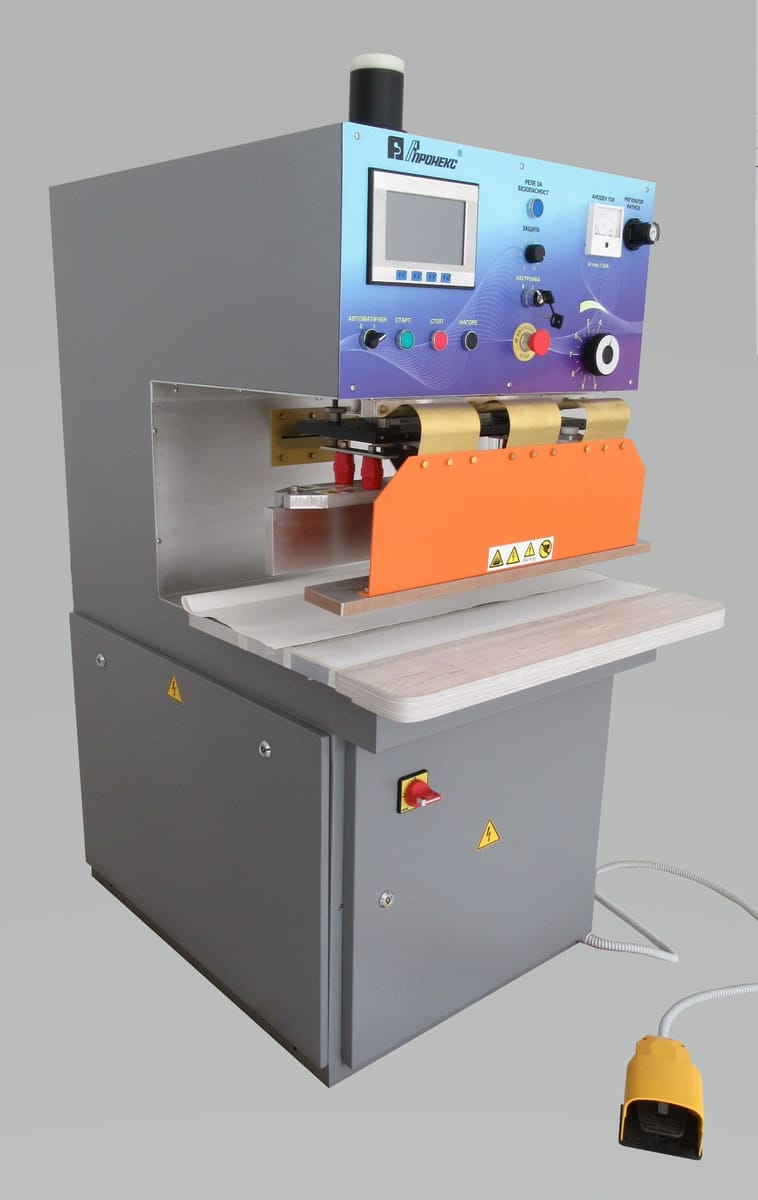

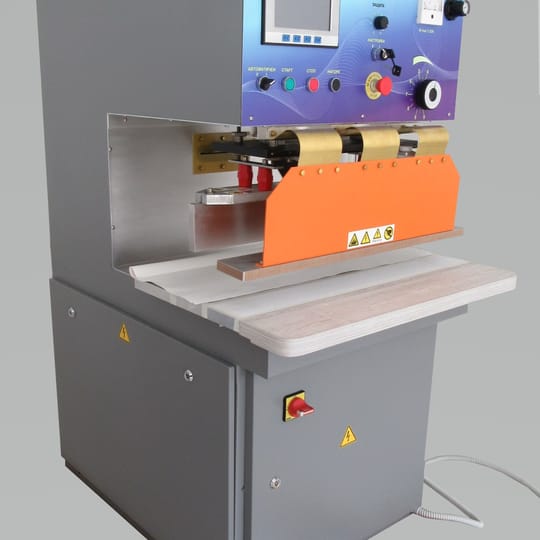

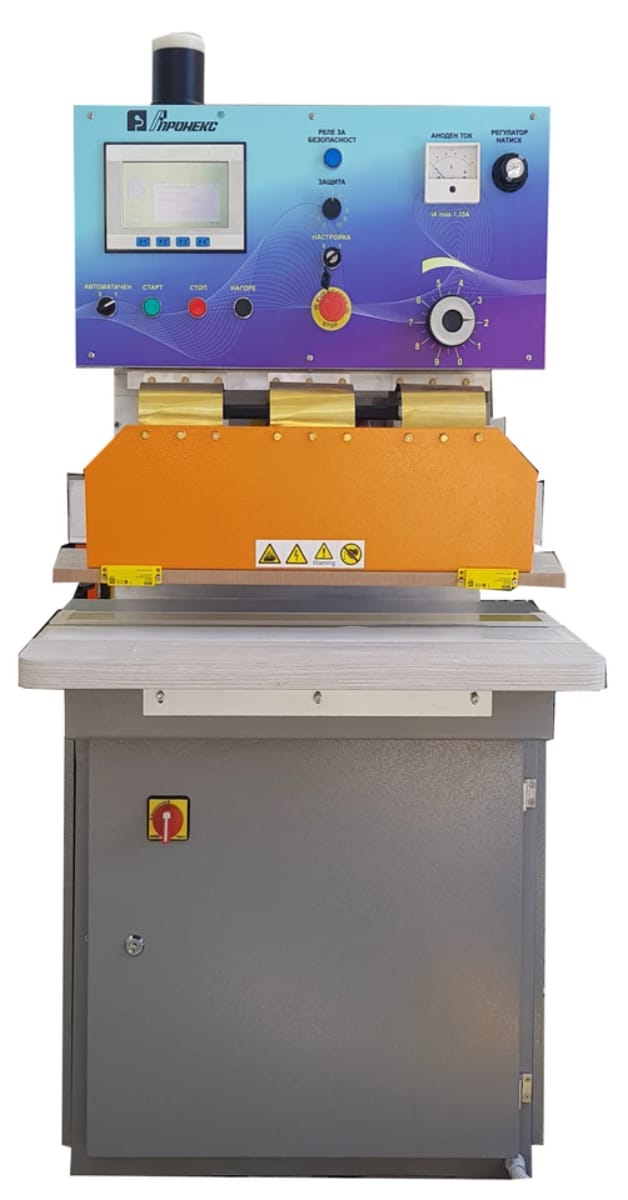

UZP 4500 is designed for high-frequency welding of soft PVC foil, artificial leather or PVC-coated fabric. It is equipped with a high-frequency generator with 4,5 kW power and a specialized press with pneumatic pressure up to 400 kg.
UZP 4500
UZP 4500
Technical Parameters
- Power supply: 3x400VAC 50Hz
- Consumed power: up to 6 kVA
- Nominal HF power: 4 kW
- Operating frequency: 27,12 Mhz+/-0,6%
- Cooling: forced, air
- Generator tube: BM-5 Marshall
- Degree of protection: IP20
- Overall dimensions: 1610 x 1120 x 920mm
- Weight: approx. 380 kg
