The three-phase thyristor breaker AproPower ACB 3 50/500 is designed for different types of three-phase loads. Different configurations of resistive loads for heating can be connected to the breaker. Nominal power of the load can be up to 50kVA. The three-phase thyristor breaker ensures precise control of heating elements with different temperature coefficients, connected directly to the breaker or through a transformer.

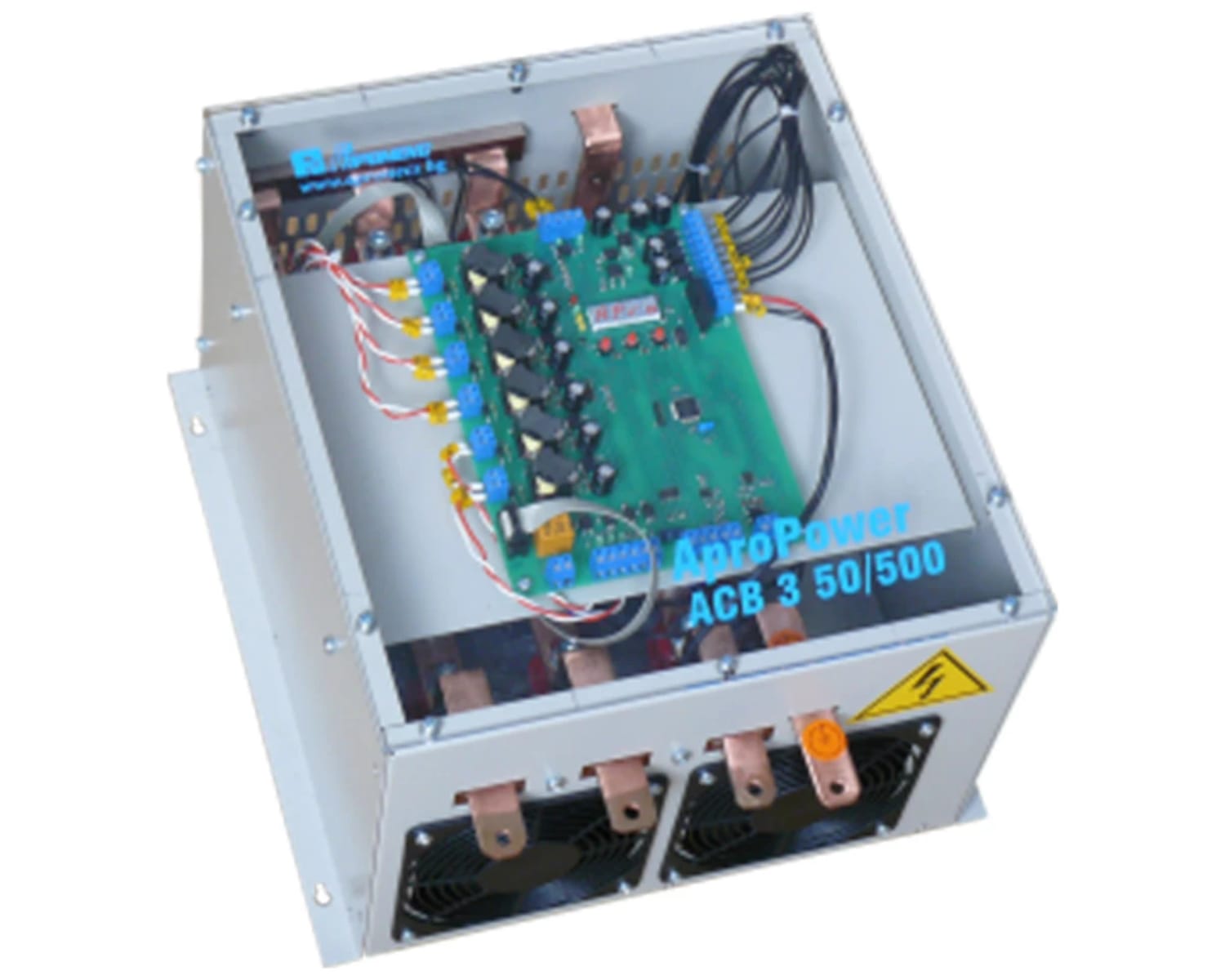

Three-phase thyristor breaker 50kVA AproPower ACB3 50/500
Three-phase thyristor breaker 50kVA AproPower ACB3 50/500
Technical Parameters
- Nominal output current: 100 A AC
- Nominal output voltage: 3N – 380V – 50Hz -10/+6%
- Power supply voltage: 3N – 380V – 50Hz -10/+6%
- Power loss: 850 W
- Power consumption at MAX load: 100 kVA
- Smooth regulation of output current: from 0 to Inom
- Soft switching of load:
- Load configuration: 3- or 4-wire star or delta
- Power control: 0 to 255 phase periods LM – PWM (phase)
- Cooling: air
- IP protection: IP00
- Power control input signal: current 4-20 mA
