The rectifier AproPower TI 2500/10 is designed to power supply plating baths, low-voltage consumers, sources of constant current or voltage. Control panel of the rectifier can be moved to a remote console, to up to 50m distance from the device. The RS 485 output of the control block enables connection to integrated system for control of the technological process.

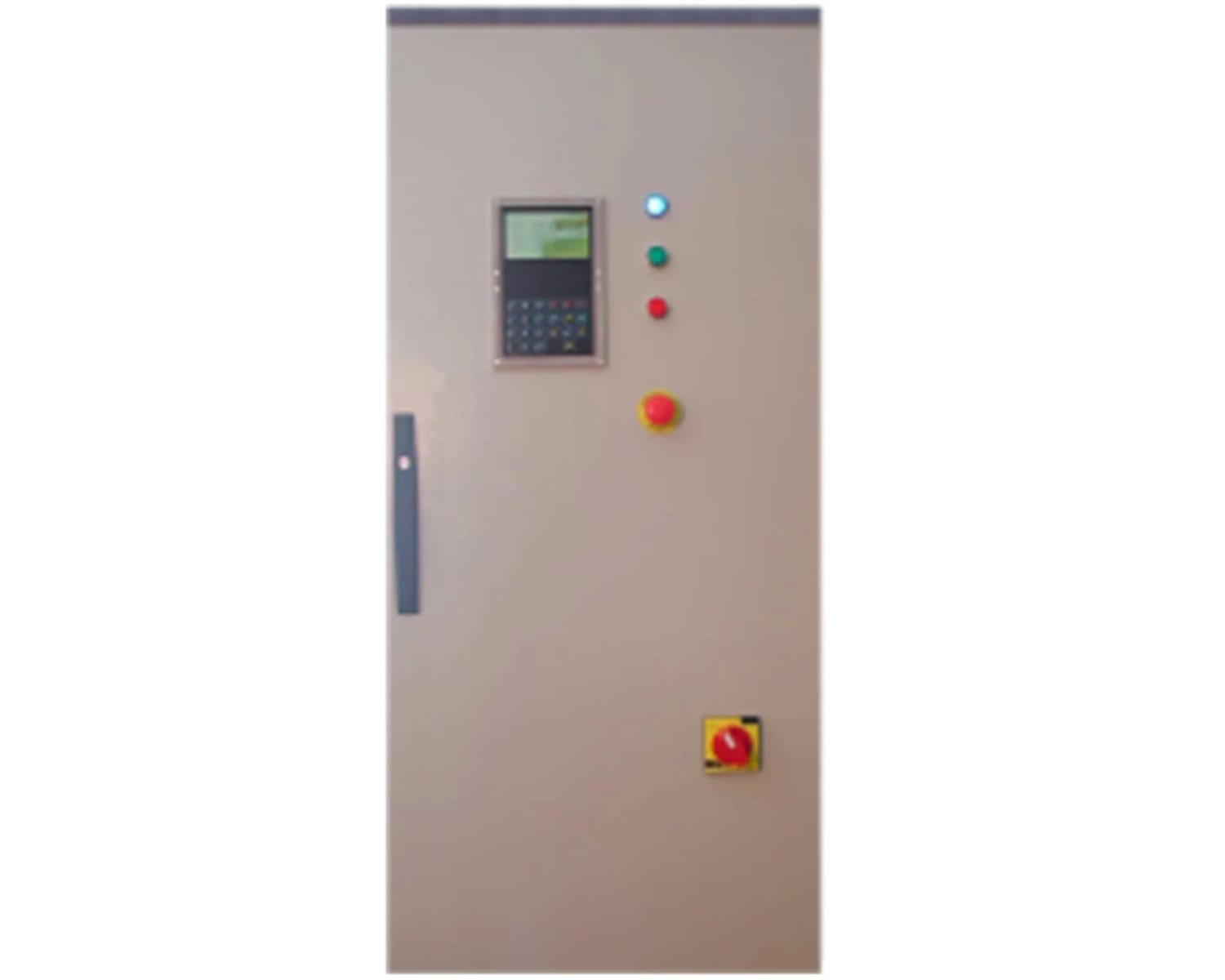

Rectifier for electroplating AproPower TI 2500/10
Rectifier for electroplating AproPower TI 2500/10
Technical Parameters
- Nominal output current: 2500 A DC
- Nominal output voltage: 10 V DC
- Coefficient of pulsation MAX: 5%
- Power supply voltage: 3N - 380V - 50Hz -10/+6%
- Consumed power at MAX load: 27 kVA
- Smooth regulation of output current: from 0 to Iном
- Voltage or current regulation: selectable
- Cooling: air
- Protection: overheating
- Remote control RS 485: option
