The controller AL 3 AN1339 is designed to control the process of baking powder epoxy-polyester paint coatings. Upon reaching the set temperature, it is maintained for the preset time. After that period, the heating is turned off.

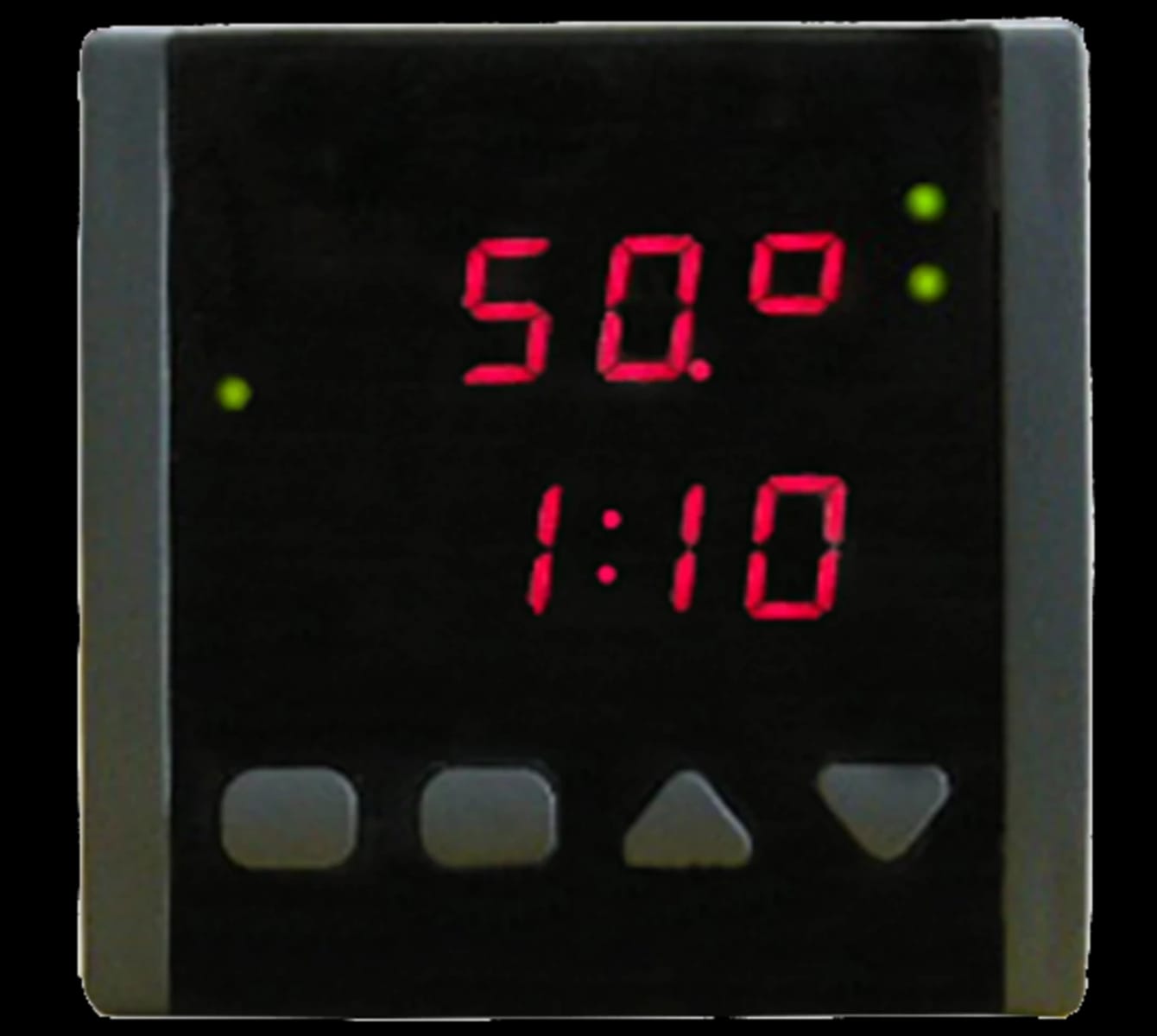

Programmable controller for baking of powder paints AL 3 AN1339
Programmable controller for baking of powder paints AL 3 AN1339
Video
Technical Parameters
- Power supply voltage: 86 - 246 V AC
- Sensor type: Pt 100
- Number of outputs: 2 relay
- Display: 7-segment, 2х4-digits
- Precision of measurement: 1oC,
- Ambient temperature: 0-60 oC
- Humidity: up to 80% RH
- Protection: IP 20
- Overall dimensions (l х w х h): 102 x 72 x 78 mm
