Muffle Furnace AproTerm 6L

Muffle Furnace AproTerm 6L

Product Inquiry

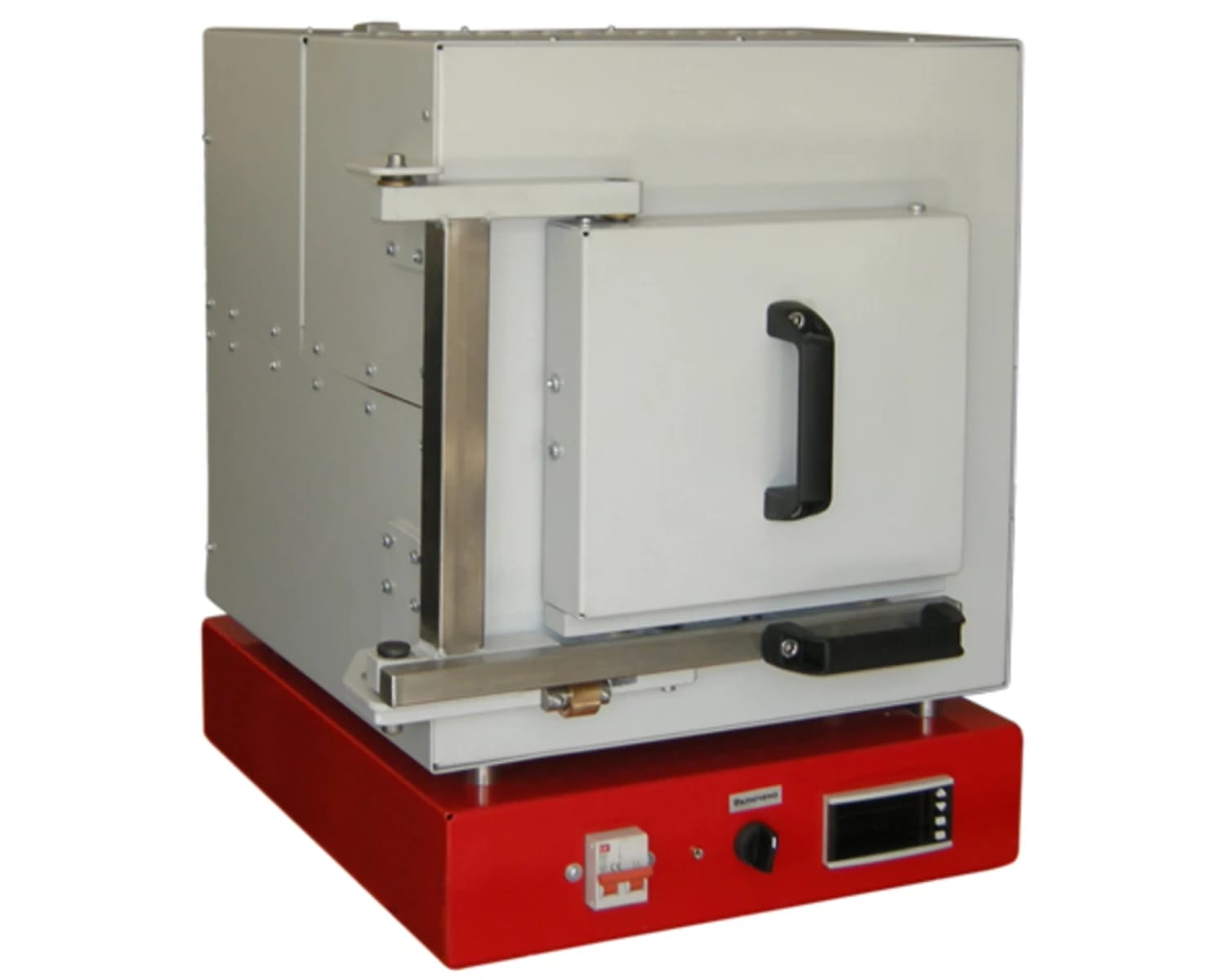

The AproTerm 6L muffle furnace is designed for industrial or laboratory heat treatment of materials.

The muffle is cast from a high temperature and ceramic mass around which the heaters are wound. The muffle furnace is equipped with a profile thermoregulator that allows to set 5 different programs, for each program up to 5 thermal zones can be set, each with heating or cooling rate and temperature maintenance time. The thermostat retains the programmed modes after the power is switched off. The door of the muffle furnace is opened so that the heated surface does not radiate to the hands of the person operating the furnace.

*The price is without VAT.

Technical parameters

  • Power supply: 1N 220V 50 Hz
  • Power consumption: 3000 W
  • Operating temperature: up to 1100 °C
  • Thermostat: Profile, five zones
  • Thermocouple: type K
  • Control law: PID
  • Muffle dimensions: 200 x 300 x 100 mm
  • Overall dimensions: 620 x 490 x 540 mm
  • Weight: 49 kg
