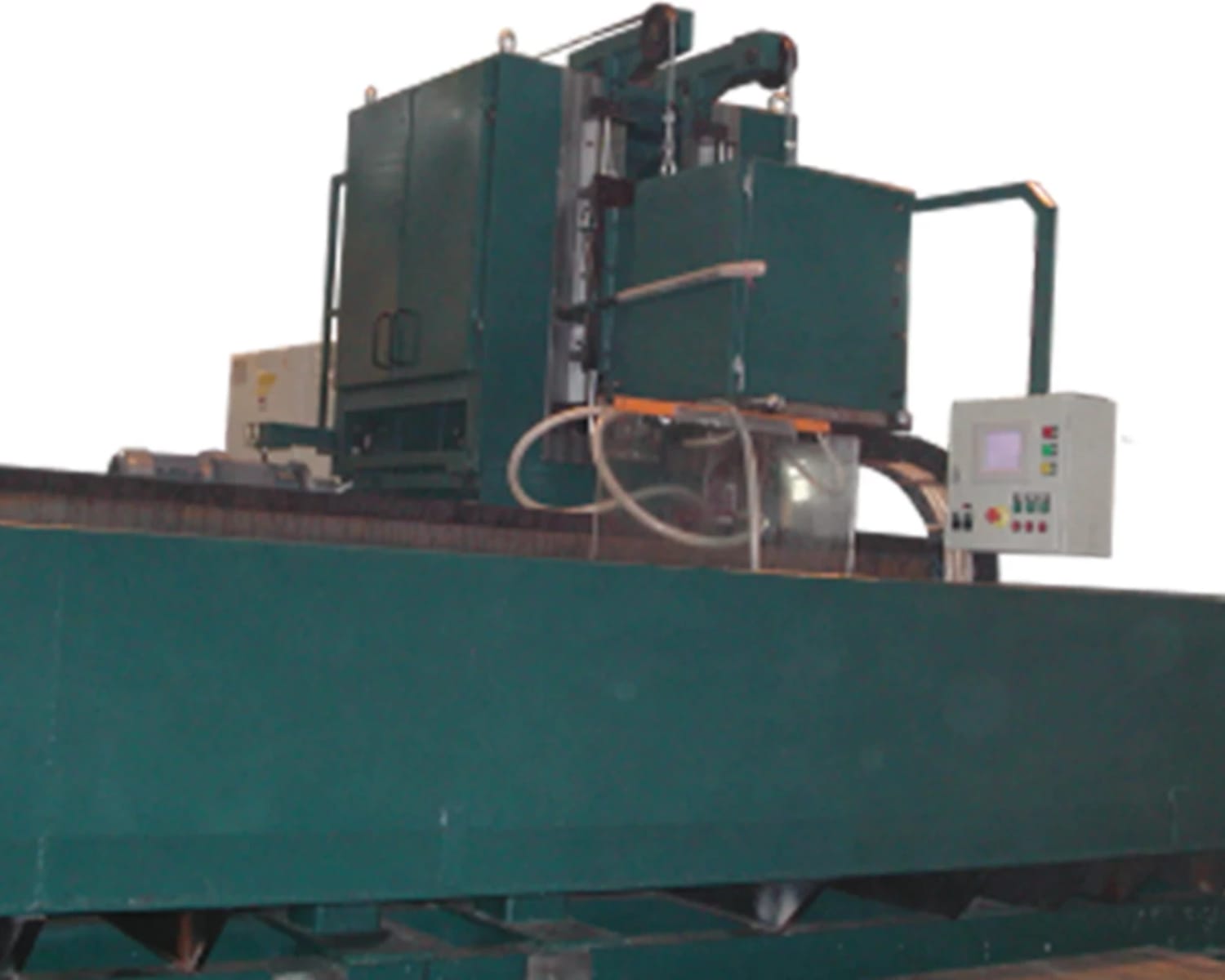

AproPower GH 160/10 is a machine for surface hardening of details with high frequency current. The machine is designed for hardening of round and flat rails; details up to Ф300 and length L = 3000. AproPower GH 160/10 is supplied with a generator 160kW, frequency 10kHz, made on IGBT transistors. The workbench of the machine allows fixing of two types of rail: flat rails with sizes up to 400 × 400 x 3000 mm; round rails from Ф40 mm to Ф300 mm and lengths up to L = 3000 mm; different types of details that are fixed to the workbench by a special appliance, or between centers.
HF Machine for surface hardening of rails AproPower GH 160/10
HF Machine for surface hardening of rails AproPower GH 160/10
Technical Parameters
- Power supply: 3N 380V -5% +10% / 50Hz
- MAX power consumption: 20 kVA
- HF power of the generator: 160 kW / 10 kHz
- HF output voltage: 600 Vef
- Power factor of generator: 0.95
- Operating frequency of generator: 6 to 12 kHz
- MAX hardening rate: 100 mm/min
- MIN hardening rate: 20 mm/min
- Nominal water consumption (option): 30 l/min
- Overall dimensions (w х h х l): 7000 х 4000 х 2200 mm
- Weight: approx. 6000 kg
