Plasma-arc cutting machine AproArc 50A

Plasma-arc cutting machine AproArc 50A

Product Inquiry

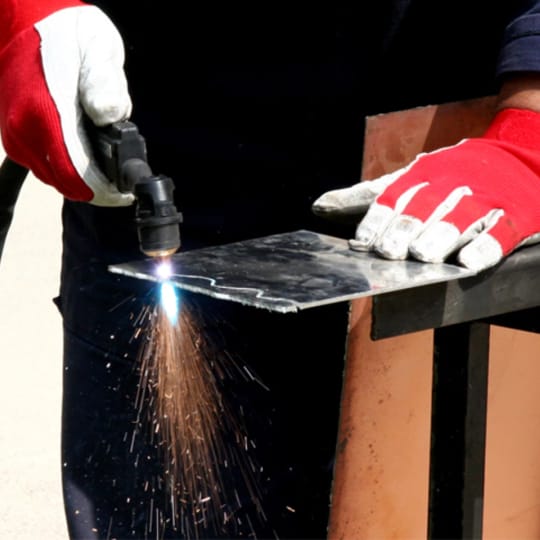

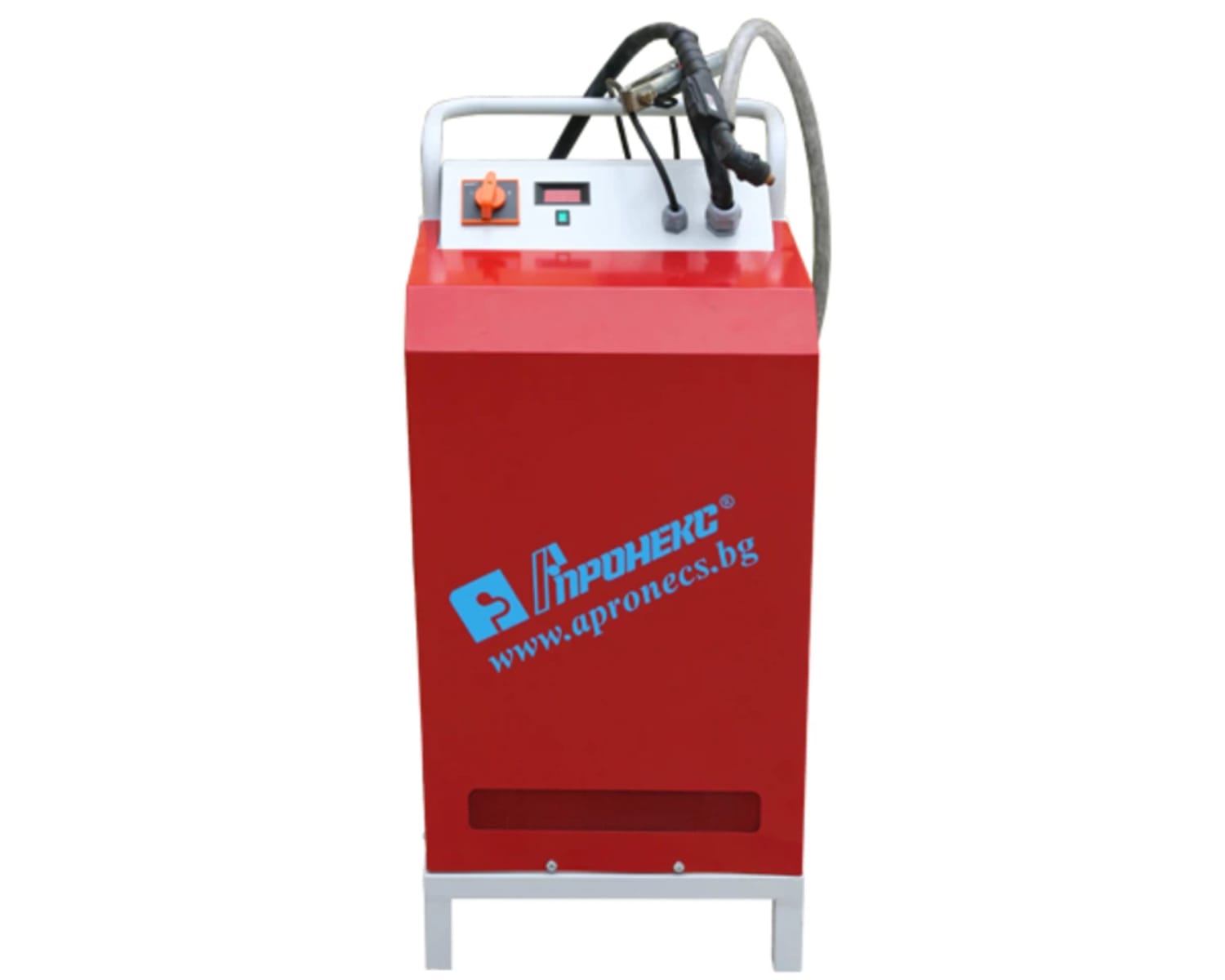

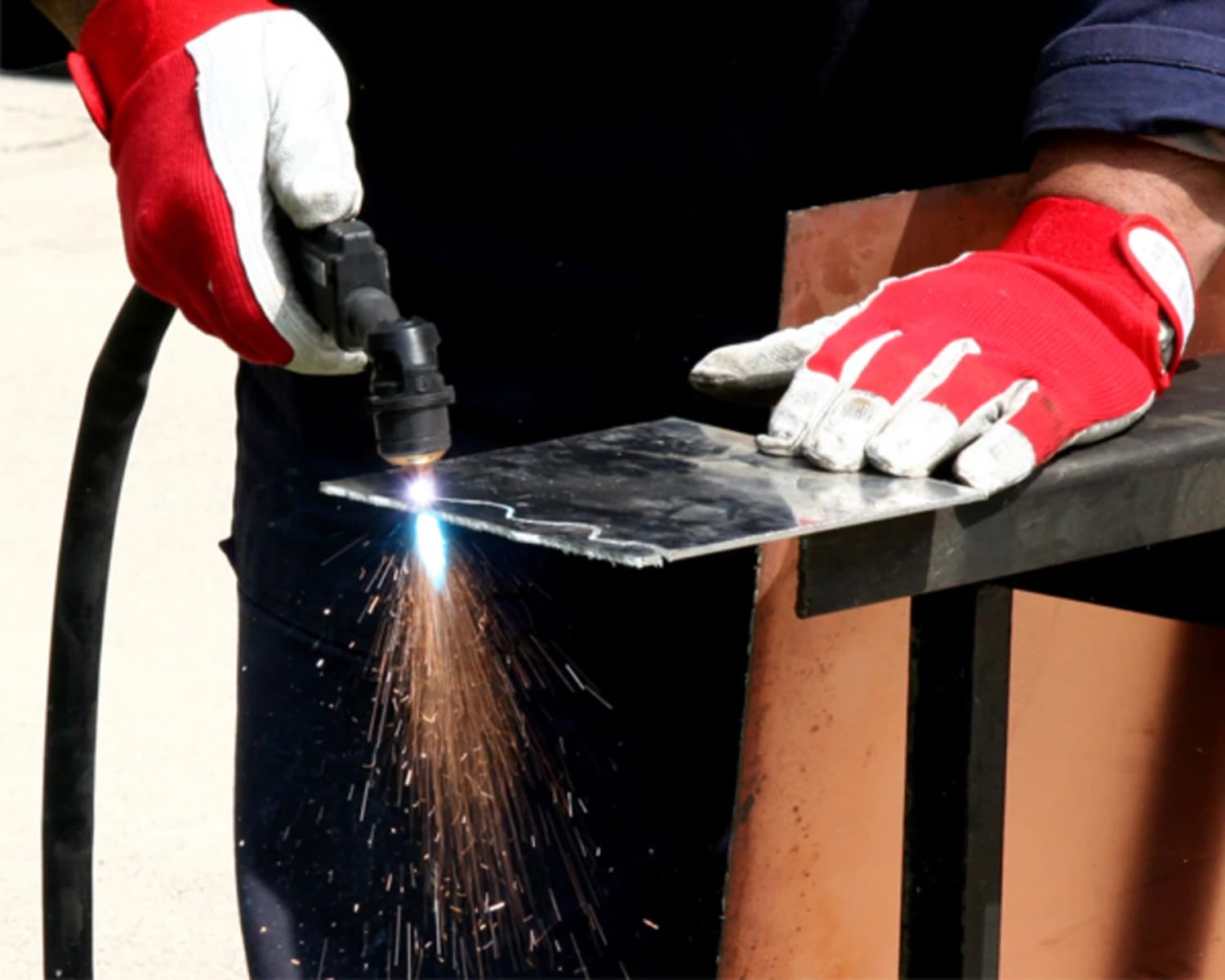

AproArc 50A is designed for air plasma-arc cutting of any electrically conductive metals. The technology ensures accurate and efficient processing of materials, as the machine can also be used for processing the edges of details before welding. AproArc 50A is a compact device, with convenient size and easy operation. It is only necessary to supply the machine with power and compressed air to start operating. AproArc 50A provides two operation modes - for cutting of aluminum and for cutting electrically conductive materials: First operation mode is for plasma-arc cutting of materials with gauge from 0,5 mm to 2mm; Second operation mode is for plasma-arc cutting of materials with gauge from 2mm to 6mm.

Technical Parameters

  • Power supply: 3N 380V
  • Nominal current: 50 A
  • MAX power consumption: 10 kVA
  • Air consumption: 10 dm3/h
  • IP protection: IP20
  • Overall dimensions: 400 х 425 х 900 mm
  • Weight: 70 kg
